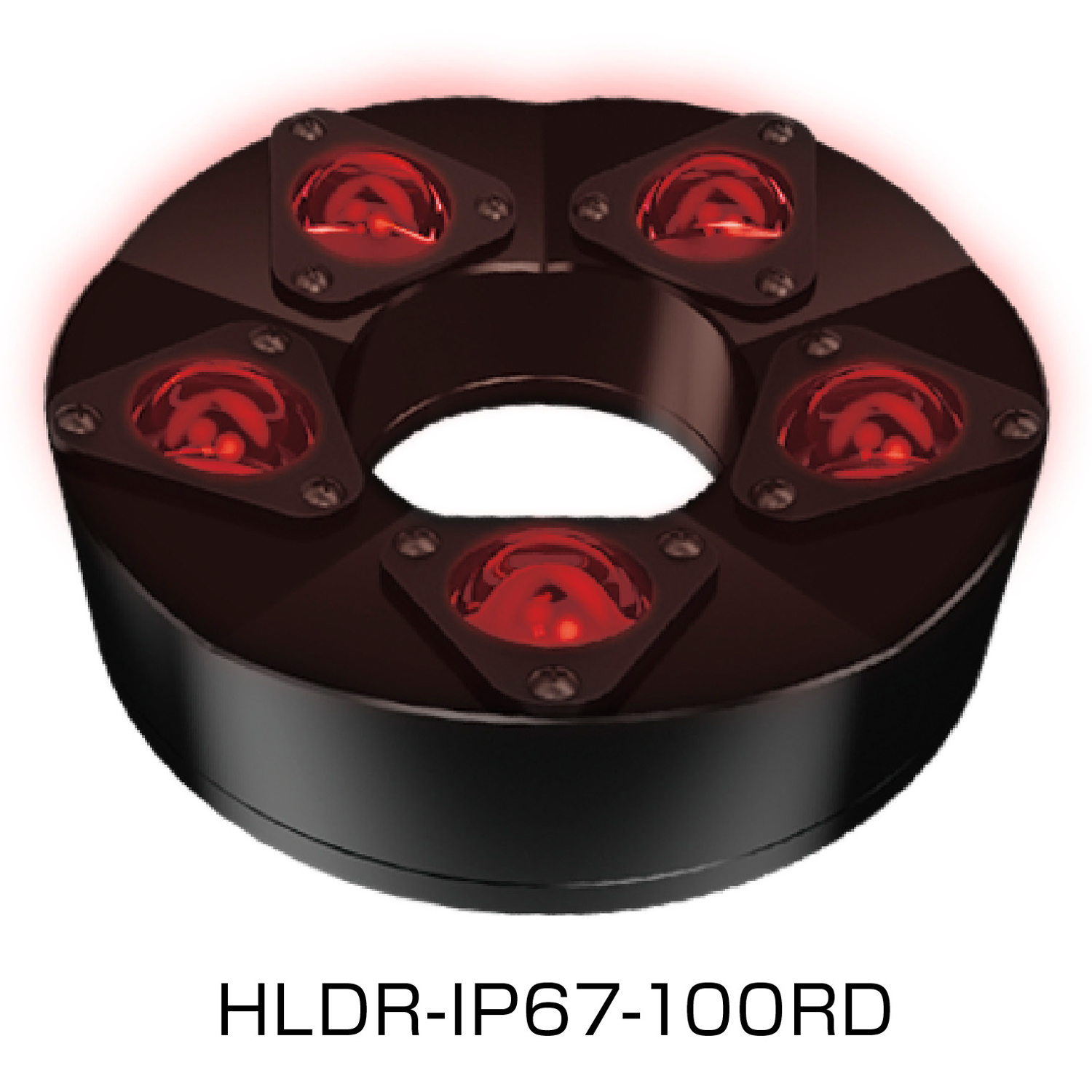

日本CCS西西斯  环型防水型光源    HLDR-IP67-100RD

日本CCS西西斯  环型防水型光源    HLDR-IP67-100RD




产品详细信息

LED发光颜色Red
峰值发光波长627 nm typ.
外观尺寸Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm
输入电压24VDC
消耗功率18 W max.
极性, 信号1: (24+), 2: NC, 3: GND(-), 4: NC
外壳材质Body: aluminum alloy (black anodized)
Screws: SUS
Washers: SUS, elastomer (TPE)
Connectors: PA resin
Lens: silicone
输入端口XS2M-D423 (Manufactured by OMRON)
适合规格CE, UKCA, RoHS, IEC 62471 (Exempt), IP67 (JIS C 0920)
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 95%RH (No condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式自然风冷
重量420 g max.
附属品使用说明书
备注When connected to a Dedicated Cable, this product has a protective structure of IP67 to prevent dust and water intrusion so that you can apply this product to wider range of environments than previous products.
However, you cannot use this product in water continuously.
