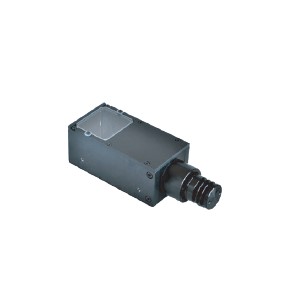

日本CCS西西斯  同轴光源      KT-MFU-54X40-HLV

日本CCS西西斯  同轴光源      KT-MFU-54X40-HLV



产品详细信息

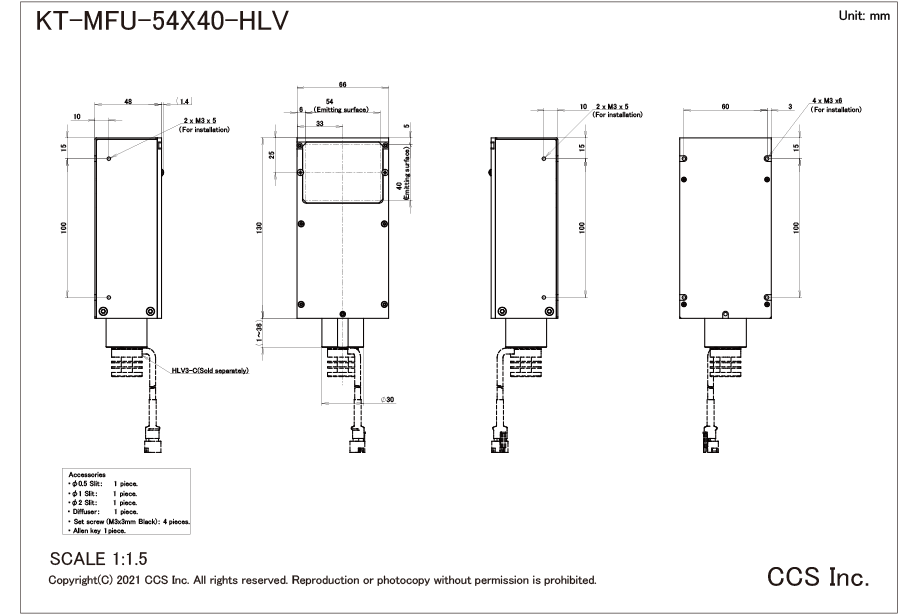

外观尺寸W 66 mm x D 131 to 166 mm x H 48 mm
外壳材质Aluminum alloy, Steel sheet, Resin
适合规格RoHS
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
重量400 g max.
附属品Aperture (φ0.5 mm) x 1, Aperture (φ1.0 mm) x 1, Aperture (φ2.0 mm) x 1,
Set of screws (M3 x 3 mm black) x 3, M3 hexagonal wrench x 1
*The φ1.0 aperture is fitted with a diffusion plate at the time of factory shipment.
*Replacing with one of the additional apertures supplied allows the light quantity (high / low) and light distribution (wide / narrow) to be changed.
备注Spot lighting equipment for light units is sold separately.
Compatible Lights :
HLV3-22RD-1C / HLV3-22SW-1C / HLV3-22BL-1C / HLV3-22GR-1C,
HLV3-22RD-2C / HLV3-22SW-2C / HLV3-22BL-2C / HLV3-22GR-2C,
HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C
Please use the recommended light units for each HLV product.
