日本CCS西西斯 紫外光源 LDR2-100UV3-365-W

产品目录

日本CCS西西斯 紫外光源 LDR2-100UV3-365-W

日本CCS西西斯 紫外光源 LDR2-100UV3-365-W

日本CCS西西斯 紫外光源 LDR2-100UV3-365-W日本CCS西西斯 紫外光源 LDR2-100UV3-365-W产品详细信息LED发光颜色Ultraviolet峰值发光波长365 nm typ.外观尺寸LDR2-100UV3-365-N: Outer diameter 100 mm, Inner diameter 30 mm, Height 19 mmLDR2-100UV3-365-W: Out…

产品详情

Product Detail

日本CCS西西斯  紫外光源    LDR2-100UV3-365-W

日本CCS西西斯  紫外光源    LDR2-100UV3-365-W





产品详细信息

LED发光颜色Ultraviolet
峰值发光波长365 nm typ.

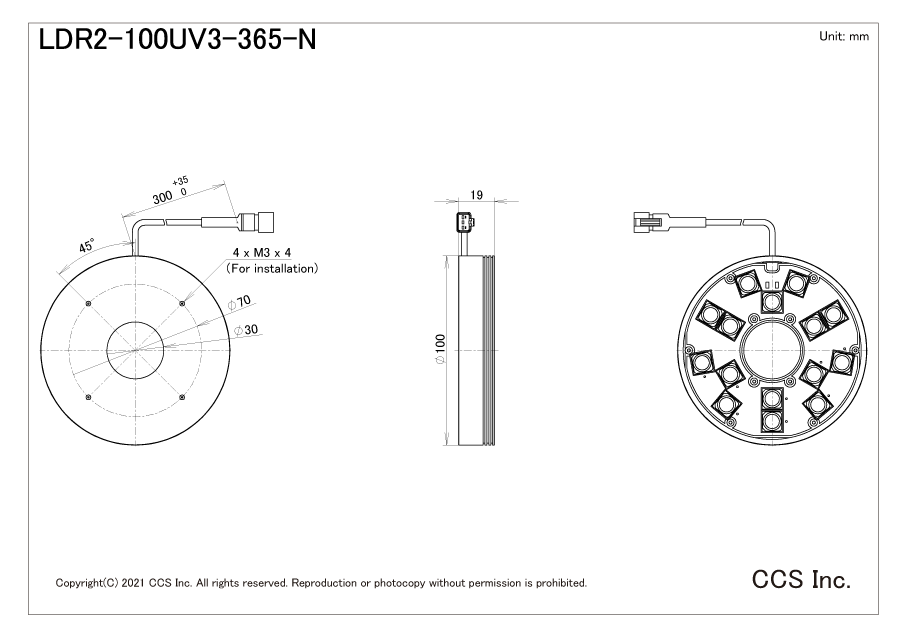

外观尺寸LDR2-100UV3-365-N: Outer diameter 100 mm, Inner diameter 30 mm, Height 19 mm
LDR2-100UV3-365-W: Outer diameter 100 mm, Inner diameter 30 mm, Height 15 mm
输入电压24 VDC
消耗功率23 W max.
极性, 信号1: (+), 2: NC, 3: (-)
线缆长度300 mm
外壳材质Aluminum alloy
输入端口SMR-03V-B
适合规格CE, UKCA, RoHS
IEC 62471
LDR2-100UV3-365-N: High risk
LDR2-100UV3-365-W: Mod risk
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式自然风冷
重量LDR2-100UV3-365-N: 210 g max.
LDR2-100UV3-365-W: 240 g max.
附属品User Manual, Radiation aperture seal, UV DANGER seal
注意事项* Do not expose your eyes or skin to direct UV irradiation.
* When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts).
* Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes.
* Wear long sleeves and gloves to protect your skin from UV irradiation.
* Thoroughly educate all those involved near the product about the dangers of UV LEDs.
