日本CCS西西斯  紫外光源    LDL-71X12UV3-365-N

日本CCS西西斯  紫外光源    LDL-71X12UV3-365-N



产品详细信息

LED发光颜色Ultraviolet
峰值发光波长365 nm typ.

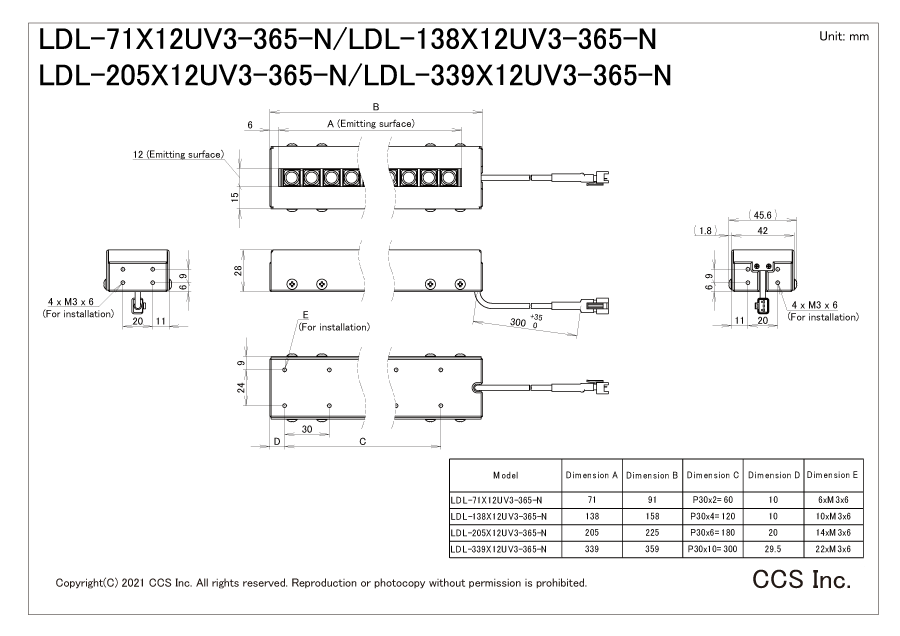

外观尺寸W 91 mm x D 45.6 mm x H 28 mm
输入电压24 VDC
消耗功率7.6 W max.
极性, 信号1: (+), 2: NC, 3: (-)
线缆长度300 mm
外壳材质Aluminum alloy, Steel sheet
输入端口SMR-03V-B
适合规格CE, UKCA, RoHS
IEC 62471
LDL-71X12UV3-365-N: High risk
LDL-71X12UV3-365-W: Mod risk
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式自然风冷
重量270 g max.
附属品User Manual, Radiation aperture seal, UV DANGER seal
注意事项* Do not expose your eyes or skin to direct UV irradiation.
* When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts).
* Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes.
* Wear long sleeves and gloves to protect your skin from UV irradiation.
* Thoroughly educate all those involved near the product about the dangers of UV LEDs.
