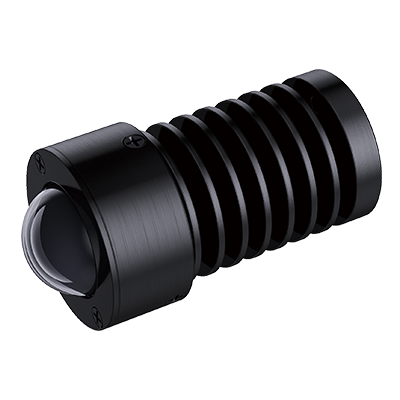

日本CCS西西斯  紫外光源    HLV2-24UV3-365

日本CCS西西斯  紫外光源    HLV2-24UV3-365



产品详细信息

LED发光颜色Ultraviolet
峰值发光波长365 nm typ.

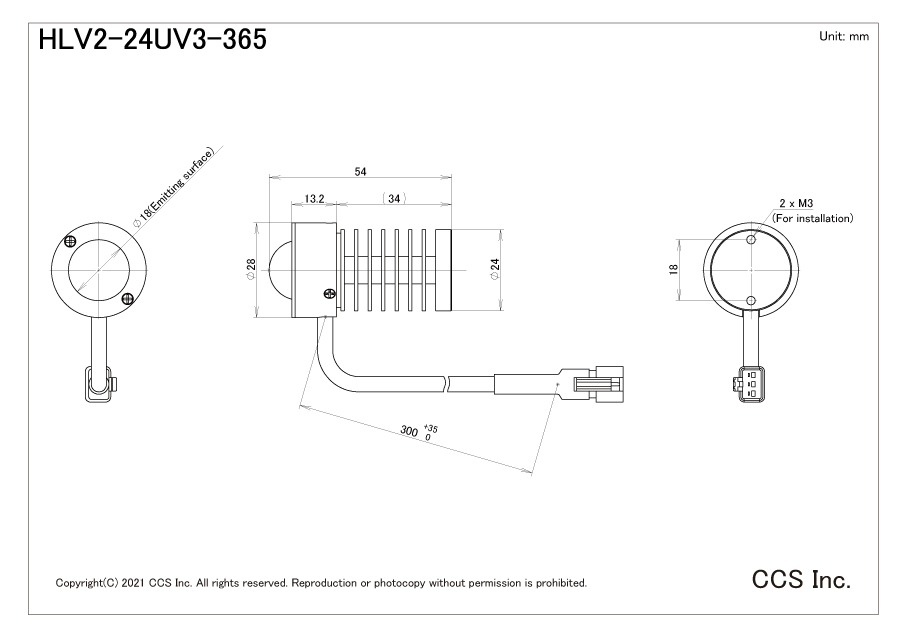

外观尺寸Outer diameter 24 mm, Tip diameter 28 mm, Total length 54 mm
消耗功率2.8 W max.
极性, 信号1: Signal, 2: (+), 3: (-)
线缆长度300 mm
外壳材质Aluminum alloy
输入端口SMR-03V-B
输入电流0.7 A max
适合规格CE, UKCA, RoHS, IEC 62471（High risk）
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式自然风冷
重量50 g max.
附属品User Manual, Radiation aperture seal, UV DANGER seal
注意事项* UV radiation is very harmful to the naked eye.
* To avoid direct exposure to ultraviolet radiation, all workers around this product must use protective equipment.
* Make known to all personnel concerned the risk of ultraviolet radiation.
* Take sufficient safety precautions when handling the machinery and devices incorporating this product.
* Please inquire if you would like to use in combination with a Strobe Control Unit (overdrive type).
