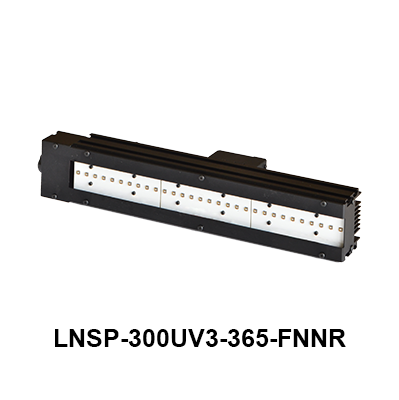

日本CCS西西斯  紫外光源    LNSP-300UV3-365-FN

日本CCS西西斯  紫外光源    LNSP-300UV3-365-FN



产品详细信息

LED发光颜色Ultraviolet
峰值发光波长365 nm typ.

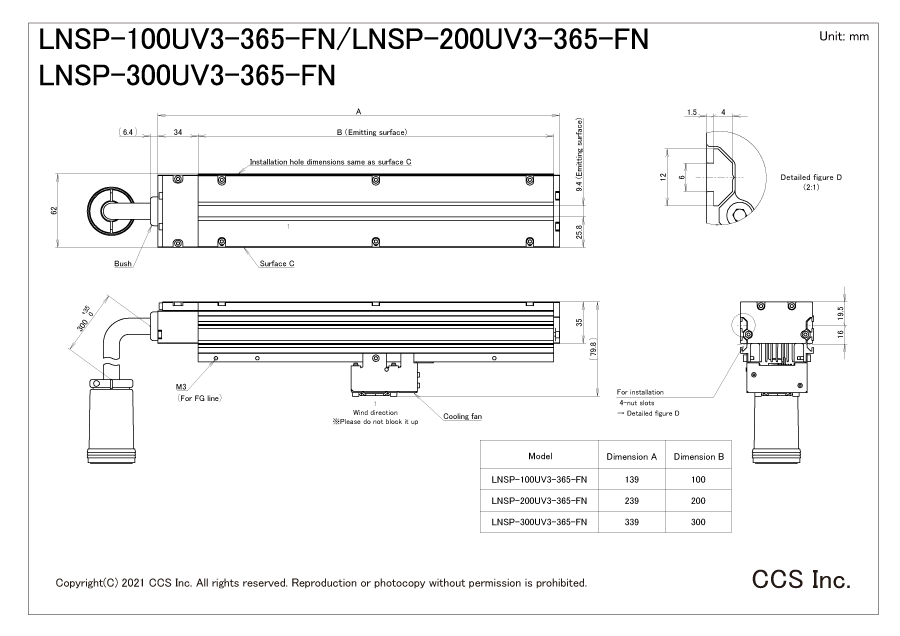

外观尺寸W 339 x D 62 x H 79.8 mm
消耗功率103 W max. (Including power consumption for fans)
线缆长度300 mm
外壳材质Aluminum alloy, Steel sheet
输入端口Metal connector PRC04-12A26S-37M18 (Tajimi Electronics co.,ltd)
适合规格CE, UKCA, RoHS, IEC 62471（High risk）
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式强制冷却
重量1700 g max.
附属品User Manual, Radiation aperture seal, UV DANGER Seal, Nuts for frame x 4, FG line (2 m), M3 mounting screw
注意事项* Do not expose your eyes or skin to direct UV irradiation.
* When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts).
* Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes.
* Wear long sleeves and gloves to protect your skin from UV irradiation.
* Thoroughly educate all those involved near the product about the dangers of UV LEDs.
