日本CCS西西斯  光源机    PFB3-20SW-SJT-HY(A)

日本CCS西西斯  光源机    PFB3-20SW-SJT-HY(A)



产品详细信息

LED发光颜色White
相关色温5,700 K typ.
外观尺寸W 70 mm x D 150 mm x H 100 mm
(not including connectors, knobs, legs, and other projections)

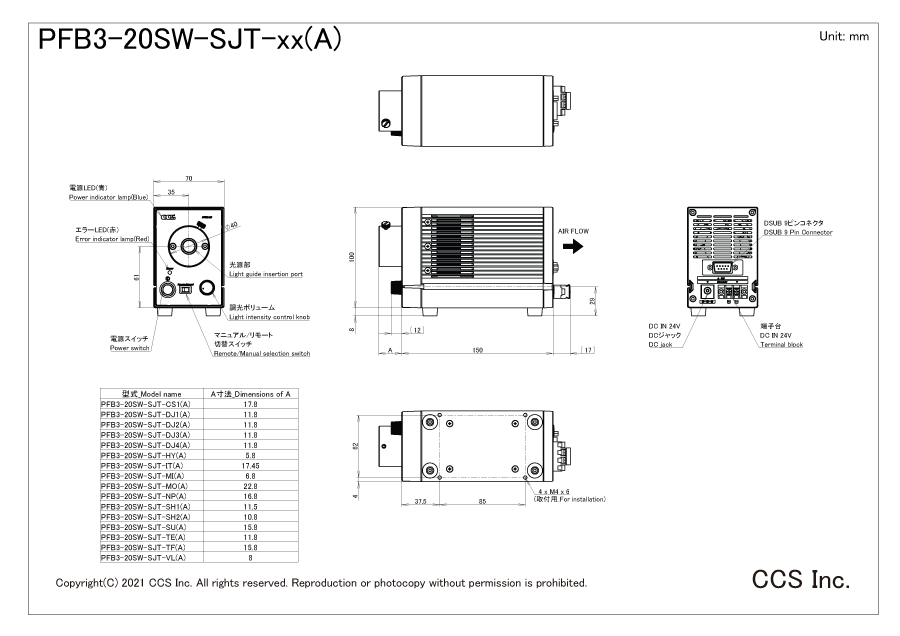

Please refer to the "Dimensions" tab for light guide adapter dimensions chart.
通道数1 channel
驱动方式恒流方式
发光方式常时发光
调光方式可变电流控制
调光Manual
Continuous control using the intensity control knob
Remote
256-step light intensity using RS-232C communications command (default value: 0)

Using the Remote/Manual switch on the front panel
输入电压24 VDC (rated)
21.6 to 26.4 VDC (range)
消耗功率18 W typ.
绝缘耐压・绝缘电阻(输入-FG)Insulation resistance: 500 VDC, 1M Ω min.
Withstanding voltage: 250 VAC for one minute, cutoff current: 10 mA
外壳材质Aluminum alloy
错误检测显示An error indicator lamp on the front panel flashes (0.5 sec) and output stops
输入端口DC jack for power supply, Terminal block for power supply, External Control connector (9-pin D-sub)
适合规格CE, UKCA, RoHS, IEC 62471（Low risk）
使用温湿度Temperature: 0 to 40℃, Humidity: 25 to 85%RH
(No condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式Forced air cooling, Intake vents: sides, Exhaust vents: rear
重量1,200 g max.
附属品使用说明书
注意事项Be sure to confirm the specifications of the light guide before use.
