日本CCS西西斯   RGB光源   HPR2-150XX-DV4SM8

日本CCS西西斯   RGB光源   HPR2-150XX-DV4SM8



产品详细信息

LED发光颜色"XX" in the model name indicates the LED color with one of the following letters: SW (white) or RD (red).
峰值发光波长RD: 635 nm typ., SW: 6,000 K typ.

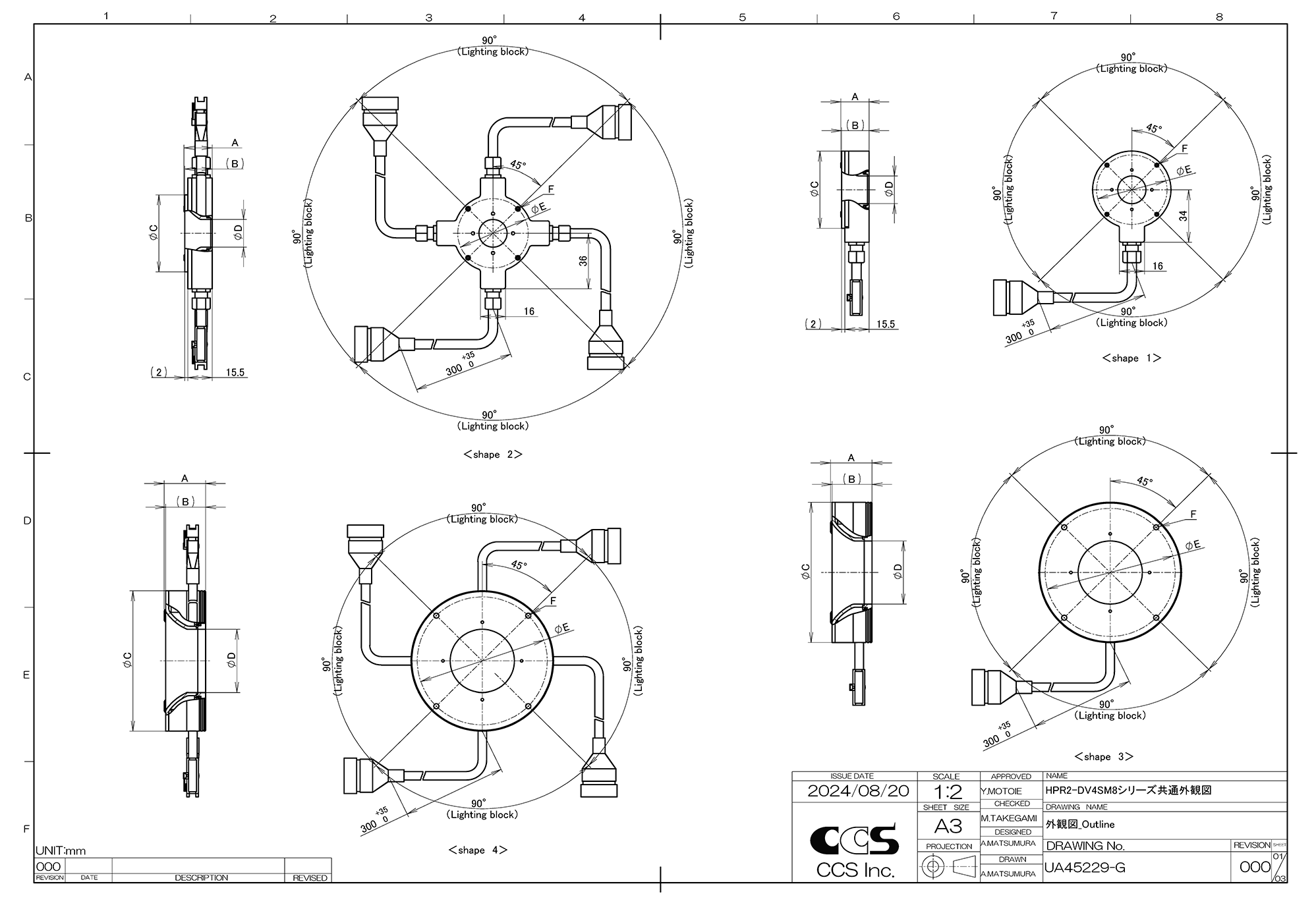

外观尺寸Outer diameter 166 mm, Inner diameter 116 mm, Height 26.4 mm
输入电压24 VDC
消耗功率RD: 25.5 W max., SW: 25 W max.
极性, 信号1: (+), 2: (-), 3: (+), 4: (-), 5: (+), 6: (-), 7: (+), 8: (-)
线缆长度300 mm
输入端口SMR-08V-B
适合规格CE, RoHS
使用温湿度Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation)
保存温湿度Temperature: -20 to 60℃, Humidity: 20% to 85%RH (with no condensation)
