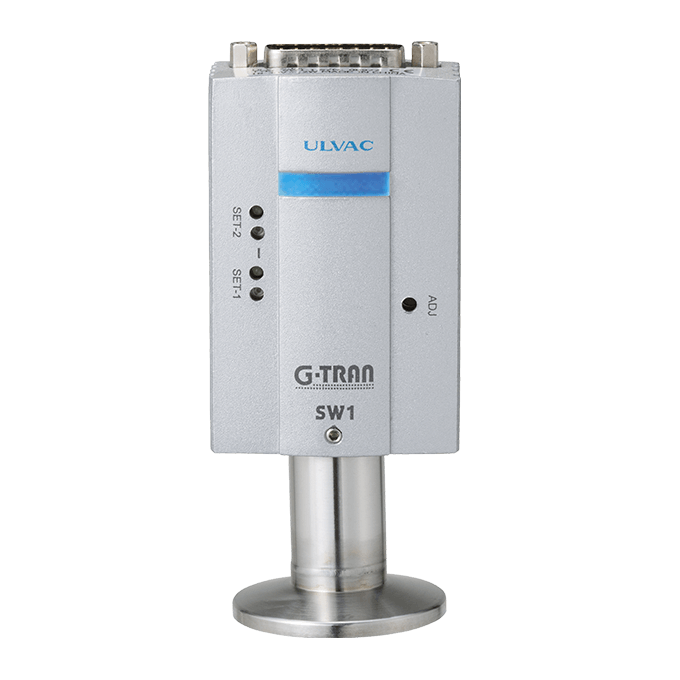

ULVAC爱发科    皮拉尼真空计   SW1-1

ULVAC爱发科    皮拉尼真空计   SW1-1



规格

ModelSW1-1SW1-2
Connectable sensor head1 pc
Compatible sensor headSWP-16（NW16）, SWP-25（NW25), SWP-R1/8（R1/8）, SWP-P18（φ18）, SWP-P15（φ15）, SWP-CF16（ICF034）, SWP-1S（ASME BPE sanitary 1"）
Measurable pressure range5.0×10-2 ~ 1.0×10+5 Pa（Pa（表示範囲：1.0×10-2 ~ 1.2×10+5Pa）
Accuracy*1×10-1 Pa ~ 1×10+4 Pa ： ±10%
5.0×10-2 ~ 1.0×10-1 Pa, 1×10+4 Pa ~ 1×10+5 Pa : ±20%
Repeatability1×10-1 Pa ~ 1×10+4 Pa : ±2%
Sampling time50ms 5回の移動平均処理
Value outputOutput voltage DC 0 to 10V
Pressure indication (Log) 1.7V to 8.0V 1V/decade
(Update time) 50ms
Control input signalOpen collector input, Negative logic-
ADJ Adjustment (ZERO point, atmosphere adjust)-
Control output signal

Open collector output, negative logic [rating: 30VMAX, 50mAMAX, 70mW]

-
Error signal-
Set point 1, 2-
Monitor for setpointSet point 1, 2: 0 to 10V Log output-
Serial communication type-RS232C/RS485
LED displayPOWER/ERROR: Power error LED
SET-1: Set point 1LED-
SET-2: Set point 2LED-
Materal of filamentPt
Operating temperature range10 ~ 40℃
Operating humidity range15 ~ 80% (Not condensing)
IP ratingIP30 (Sensor unit)
Fixing positionFree
Power supply voltageDC18V ~ 30V, 2W (4.8W w/power input)
Input/output connectorD-sub 15-pin (M2.6mm screw) - side sensor unit
Weight150g (with SWP-16)
Dimension (Power supply) W×D×H70mm×46mm×28mm
Standard accessoriesQuick manual
OptionInput/output conector (D-sub 15-socket (M2.6mm screw)), Inspection result data sheet, General calibration test report, JCSS caribration certificate
Applicable standardCE
