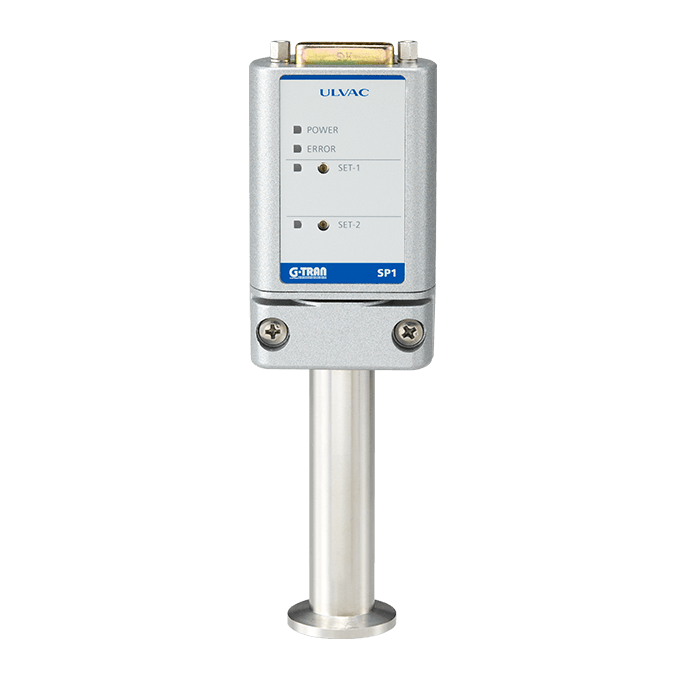

ULVAC爱发科    皮拉尼真空计   SP1

ULVAC爱发科    皮拉尼真空计   SP1



规格

TypeSensor unit
ModelSP1
Compatible sensor headWP-01, WP-02, WP-03, WP-16

Accuracy


±15 %（51 Pa ～760 Pa）
±30 %（10 Pa ～1000 Pa）
±50 %（0.4 Pa ～3000 Pa）
Operating temperature range10 ~ 40℃
Measurement value outputNonlinear output: 0 to 5VDC (Max. 10V)
Setpoint 1/2 Pressure setting adjustment monitorNonlinear output: 0 to 5VDC (Max. 10V)
Control output signalOpen collector output, Negative logic
ERROR signal
Setpoint 1/2
LED displayPower, error, set point 1, set point 2
Power supply voltageDC24V±2V, 90mA（Max.）
Input/Output connectorD-sub-15P（M2.6 screw）
Weight190g /0.41lb (Excluding sensor head)

Standard accessories

Input/Output connector 1pc
Quick manual 1pc

IO and analog GND are not isolated from the power GND.
