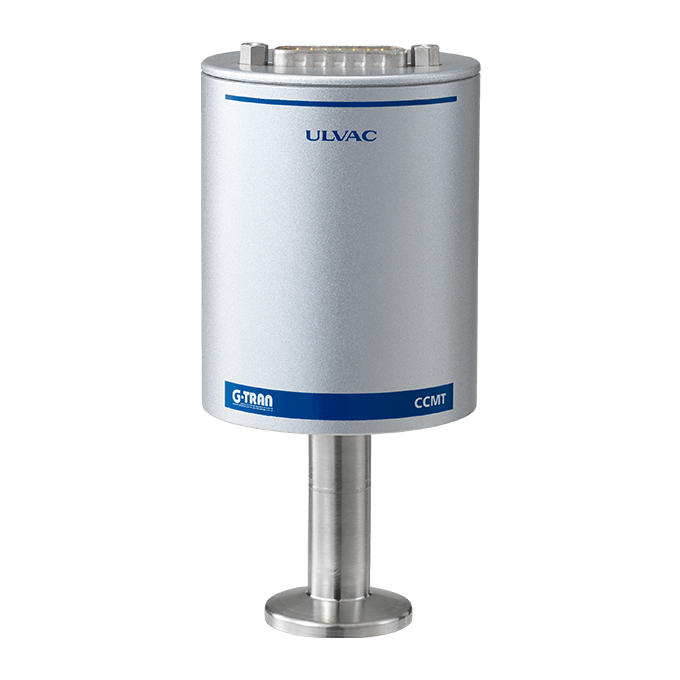

ULVAC爱发科    电容压力计   CCMT-100D

ULVAC爱发科    电容压力计   CCMT-100D


规格

ModelCCMT-D
Range full scaleCCMT-1000D133kPa (1×103 Torr, 1.33×103 mbar) F.S.
CCMT-100D13.3kPa (1×102 Torr, 1.33×102 mbar) F.S.
CCMT-10D1.33kPa (10 Torr, 13.3 mbar) F.S.
CCMT-1D133Pa (1 Torr, 1.33 mbar) F.S.
Resolution0.003% of full scale
Accuracy *1±0.2％±temperature coefficient relative to display value (The value indicates accuracy zero point adjustment)
Temperature coefficientZero voltage0.015% F.S. / ℃
Span voltage0.01% R / ℃
Operating temperature range10 to 50℃ (50 to 122 °F)
Response rate30ms or less
Material of gas contacting sectionsAl2O3、Vacon70 *2、SUS316 *3 , glass ceramics solder, Ag Ti Cu hard solder
Input powerDC14～30V, 1W
OutputDC 0 to 10V F.S.
weight329g
Dimensions55mm×117mm
Temperature compensationInternal temperature compensation circuit
Electrical connectorD-sub 15-pin male (No.4-40, DNC screw)

*1 : Non-linearity,hysteresis,repeatability at 25℃ (77℉) ambient operating temperature without tenperature effects after 2 hours operation, after zero sdjustment
*2 : 28% Ni, 23% Co, 49% Fe
*3 : 18% Cr, 10% Ni, 3% Mo, 69% Fe
