SHOWA昭和电机 鼓风机防爆系列 ME-AH-H37HT

产品目录

SHOWA昭和电机 鼓风机防爆系列 ME-AH-H37HT

SHOWA昭和电机 鼓风机防爆系列 ME-AH-H37HT

SHOWA昭和电机 鼓风机防爆系列 ME-AH-H37HTSHOWA昭和电机 鼓风机防爆系列 ME-AH-H37HTModel ( → Model explained )ME-AH-H37HTImpeller ( → Impeller Type )Air FoilDischarge Port Size (mm)240240Intake Port Size (mm)Φ300PhasesThree phaseOutput (kW)3…

产品详情

Product Detail

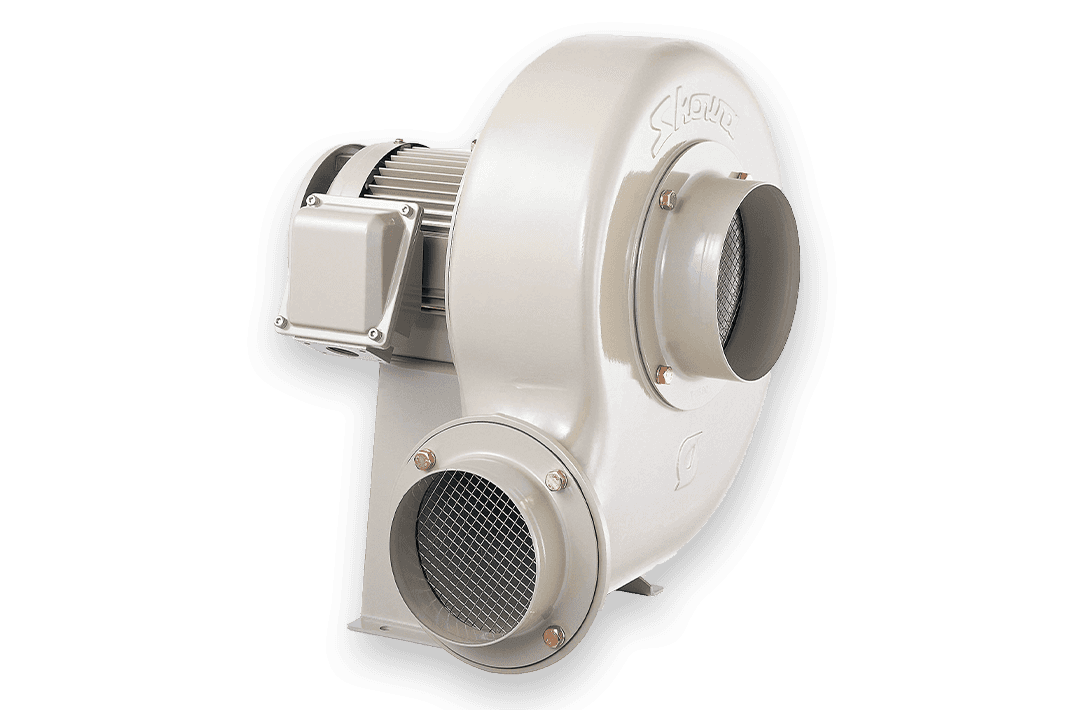

SHOWA昭和电机    鼓风机防爆系列   ME-AH-H37HT

SHOWA昭和电机    鼓风机防爆系列   ME-AH-H37HT



Model ( → Model explained )ME-AH-H37HT
Impeller ( → Impeller Type )Air Foil
Discharge Port Size (mm)240×240
Intake Port Size (mm)Φ300
PhasesThree phase
Output (kW)3.7
Standard Voltage (V)200
50HzCurrent (A)15.1
Maximum Airflow (m3/min)100
Maximum Static Pressure (kPa)2.15
60HzCurrent (A)13.6
Maximum Airflow (m3/min)120
Maximum Static Pressure (kPa)3.10
Weight (Kg)77
Maximum Intake Temperature (℃)150
Bearing NumberImpeller Side-
Non-Impeller Side-
MaterialCasingSPHC
ImpellerSPHC
