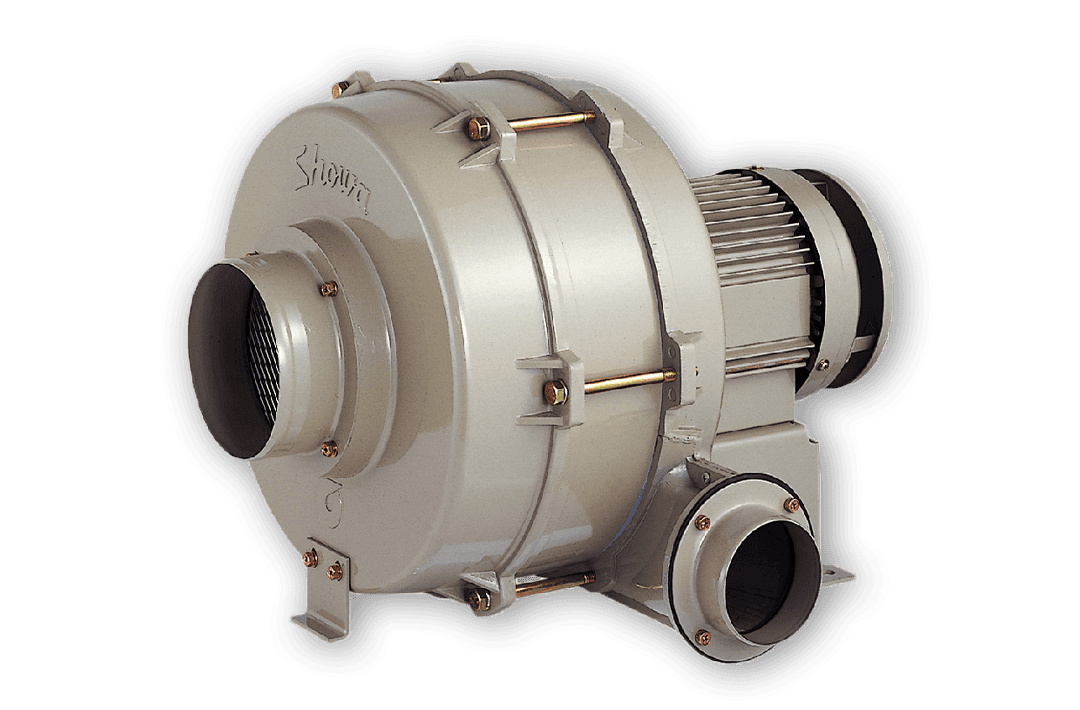

SHOWA昭和电机    鼓风机防爆系列   ME-U100B-H26HT

SHOWA昭和电机    鼓风机防爆系列   ME-U100B-H26HT



Model ( → Model explained )ME-U100B-H26HT
Impeller ( → Impeller Type )Turbo
Discharge Port Size (mm)Φ100
Intake Port Size (mm)φ148
PhasesThree phase
Output (kW)1.5
Standard Voltage (V)200
50HzCurrent (A)6.2
Maximum Airflow (m3/min)14
Maximum Static Pressure (kPa)4.00
60HzCurrent (A)6.2
Maximum Airflow (m3/min)16
Maximum Static Pressure (kPa)5.60
Weight (Kg)39
Maximum Intake Temperature (℃)150
Bearing NumberImpeller Side-
Non-Impeller Side-
MaterialCasingADC12
ImpellerA5052P
