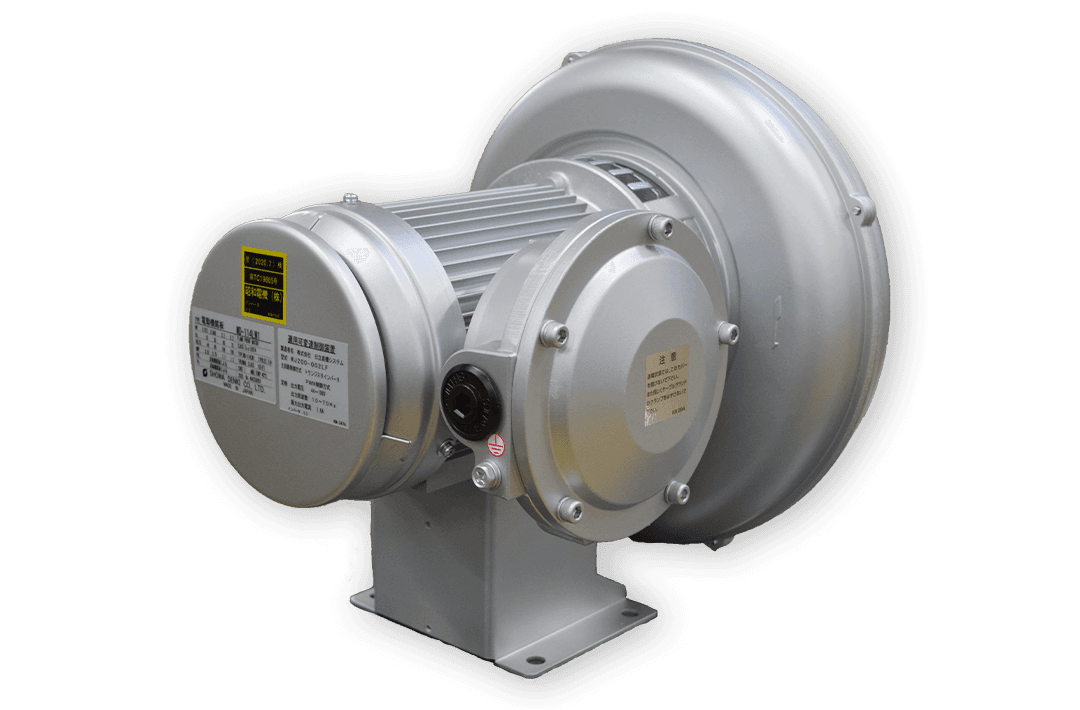

SHOWA昭和电机    鼓风机防爆系列   MDF-EP-100T

SHOWA昭和电机    鼓风机防爆系列   MDF-EP-100T



Model ( → Model explained )MDF-EP-100T
Impeller ( → Impeller Type )Radial blade
Discharge Port Size (mm)Φ97
Intake Port Size (mm)Φ123
PhasesThree phase
Output (kW)0.5
Standard Voltage (V)200
50HzCurrent (A)2.5
Maximum Airflow (m3/min)13.5
Maximum Static Pressure (kPa)1.18
60HzCurrent (A)2.3
Maximum Airflow (m3/min)14
Maximum Static Pressure (kPa)1.70
Weight (Kg)16
Maximum Intake Temperature (℃)40
Bearing NumberImpeller Side-
Non-Impeller Side-
MaterialCasingADC12
ImpellerADC12
